Note: This is the final article in an eight-part series published by GAI News that examines eight existing trends set to alter the structure of our global food system. Be sure to read the first seven articles here: Part I , Part II, Part III , Part IV , Part V , Part VI and Part VII.
“Economic growth won’t feed a growing population living on this finite planet.”– Phil Harding
Concerns about population growth have circulated through discourse since ancient times. Philosophers, such as Plato and Aristotle, questioned the sizes of their respective communities and their capacity to nourish additional people when the world had a population of about 162 million [i]. Writers from ancient Carthage had dwelled on population growth when global numbers had reached 200 million people, who were noted as “burdensome to the world which can hardly support us”. As we approach a global population that is fifty times larger than in Plato’s time, the same concerns come to light, albeit with different information.
Productivity improvements have typically remained one step ahead of food demand, allowing the world’s population to grow geometrically over the past two hundred years. Although the population continues to grow, crop yield productivity improvements have slowed considerably in the past several decades[ii].
While the preceding seven articles of our ‘Agriculture in a Changing Climate and Society’ series focus on secular trends affecting the supply side of the global agri-food system, this final piece delves into the demand side. A multitude of evidence points to a singular fact: nutritional demand is increasing rapidly on a global basis[iii]. Some experts question the world’s collective ability to nourish this demand in the long term[iv], while others speculate that new technologies will need to be developed and implemented in order to address the supply/demand imbalance. The World Resource Institute (WRI) indicates that while fulfilling nutrient requirements for an additional 2.4 billion people in the next thirty years is achievable, the global agri-food system will have to undergo significant changes in order to adapt[v].
As external factors, such as urbanization, water scarcity and pollinator loss, are set to reduce global food supply[vi], the earth’s population is projected to continue increasing for the next century[vii]. Sub-Saharan Africa is set to foster most of the world’s population growth, an area that is likely to become less suitable for crop production over the next century. In addition to increasing populations, a growing middle class will naturally continue to increase the global appetite for meat, dairy, and high-value fruit crops. These products are characterized by high production and overhead costs compared to other commodities of similar nutrient profiles. While this consumption shift is positive from the perspective of social mobility and will likely foster a period of robust demand growth for farmers in the short-medium term, the increased demand will come at cost to the environment.
Some estimate that we will have to increase arable land by 593 million hectares (more than twenty-four times the size of the United Kingdom) between 2010 and 2050 in order to bridge the gap needed to meet increasing food demands[viii]. The greatest concern lies in our collective food security in conjunction with global environmental sustainability. The socio-ecological trade-offs that arise from developing forested land lends itself to notions that our arable capacity is reaching its peak.
Food Spending and Disposable Income
Spending on food in the United States, as a percentage of disposable personal income, has been sitting near its historic low since 2004. This does not come as a surprise, but as a paradox, as calories consumed per capita in the U.S. reached the all-time high of 3,828 per day in 2005[ix].
Figure 1: Normalized food expenditures by final purchasers and users[x].
Source: USDA, 2019
Food cost compared to relative wealth is historically low throughout the world, largely due to commercialization of value-chains, historical productivity growth, and national subsidies. While consumers in developed countries are currently offered nourishment at relatively affordable prices compared to their historical income levels, these prices generally do not address the ecological externalities involved in producing the food[xi]. As such, a trend reversal is forecasted to begin in the next twenty years for net food expenditure, predicated on a declining basis of scarce resources, transitioning food demand patterns and a need to account for the environmental effects of food production.
The Malthusian Theory: Cropland Per Capita
Most significant, agricultural producers are losing cropland per capita[xii]. A typical Western diet requires about 1.2 acres of cropland per year to supply the types of calories to which we are accustomed. Emerging economies are now consuming similar diets to those of the West with more meat and dairy. This is creating a critical point of increased demand for energy intensive food products. Many areas of the world, namely Asia and Africa, will not have the arable land to produce nearly enough food to nourish its population. Figure 2 depicts each region’s cropland per capita.
Figure 2: Acres of Cropland Per Person, 2016
Source: History Database of the Global Environment (HYDE)
If every person had the appetite of an average individual in the United States at the current level of production, we would need to convert every acre of forest into farmland and would still be short of calories by about 38 percent[xiii]. With current Western food consumption, a diet that is becoming normalized by the world’s middle class, only a select few countries have the capacity to domestically produce more calories than they consume. The burden of production will be left to a handful of agricultural exporters with enough productive cropland to contribute to the global food stores, such as Canada and Australia. Admittedly, the Malthusian model of food supply versus cultivated land does not offer full explanatory power for the planet’s carrying capacity. It does, however, paint a general picture of the planet’s capacity to nourish different appetites at current technological levels.
Calories versus Nutrients
In assessing the issues surrounding global food demand, a distinction should be made between calories and nutrient-requirements. While about 800 million people globally are suffering from a means-based caloric deficit[xiv], over 2 billion do not have regular access to safe, nutritious, sufficient food[xv]. The developing world will continue to struggle with food accessibility as its population grows. Further, crop nutrient capacity in equatorial regions especially, is incredibly sensitive to rainfall variability and spells of extreme heat.
The developed-world’s farming system, which will likely provide the nourishment for most of the world’s growing population, is largely based on maximizing caloric production rather than nutrient density and diversity. This model has perpetuated throughout agricultural economies, as farmers are incentivized to maximize their yields in response to historic consumer and government interests in driving down food costs. Farmers act as rational participants, naturally responding to the markets they supply.
The developed world’s agricultural system is still incentivized with the same family of subsidies that were legislated at the dawn of the third agricultural revolution. In North America and Europe these subsidies typically offer support for a handful of crops with high caloric density such as feed-grains and oilseeds.
While global needs, production methods, and resource constraints continue to change, the policies surrounding the food system have remained largely unchanged since their inception. National subsidy programs are frequently reciprocated by similar or equivalent programs in neighbouring countries, leading to antiquated and sticky legislative movement across international value chains. Re-orienting farmer incentives from caloric density to nutrient diversity could be a fundamental step towards solving this issue by producing foods which meet the needs of a growing consumer base.
Solutions, Steps, and Goals
While the difficulties in feeding a growing population are considerable, there remains optimism that it can be achieved. There are 10 steps that would help us to address the challenges related to nourishing the food demands of a growing population. Each topic is complex, worthy of its own article, and many have been listed by the World Resource Institute as keys to “feeding the 10 billion”.
- Food Waste Mitigation: Evidence indicates that the most effective mechanisms for supplying accessible and nutritious foods exists in reducing food waste rather than growing greater volumes of crops per acre. In the developing world, most food waste occurs at the production and storage levels, while in the developed world a staggering amount of food is lost at the consumption and market levels.
- Investment in Aquaculture & Developing Sustainable Fisheries: Improved fish farming technologies including new genetics, infrastructure, and algae-based feeds have increased the competitiveness and investment merits of the aquaculture industry. Preservation of current fishery stock, alongside sustainable farming methods, will be the foundation from which we can offer omega-3 fatty acids in the future.
- Climate-Controlled Agriculture: With so much emphasis placed in farmland per capita and the notion of declining scarce land assets, climate-controlled agriculture is consistently climbing towards profitability, and therefore viability, on a large, commercial scale. Investing in low-cost options such as warehouse conversion may prove to be the next frontier of effectively nourishing urban populations. With this being said, 95 percent of our food, even in the developed world, comes from farmland.
- Improved Technology & Genetics: While crop-yield productivity growth has been slow compared to green revolution levels, new advances in crop genetics and molecular biology are remarkably promising. Further public and private investment in crop breeding, biologicals, and AI technology could make all the difference in feeding the next 2 billion people.
- Enhanced Water Management: Water depletion in groundwater systems continues to be one of the most alarming aspects of modern agriculture. We will eventually have to shift to a process where crops are irrigated only through sustainable water sources, such as rain-fed reservoirs, rivers, and/or snowmelts. That shift should begin before aquifers are fully depleted.
- Soil Health Preservation: Some scientists estimate that we are losing up to 1 percent of topsoil each year, with nutrient availability degrading as well. Nearly two-thirds of this degradation is derived from deforestation and overgrazing. Incorporating techniques such as no-till agriculture, rotational grazing, drill seeding, and certain organic production methods could significantly reduce the rate of soil loss.
- Sequester Carbon in Soils: What benefits soil health may also create the opportunity to sequester additional carbon. Maximizing soil organic matter levels offers a multitude of effects, such as enhancing yields, sequestering more carbon, diminishing the required nutrients amendments, and enhancing ecosystem diversity. This can be achieved through the use of cover crops and healthier rotations, as well as no-till and conservational tillage methods.
- Shift Diets Globally: While a sensitive argument in agricultural circles, the fact remains that reducing ruminant (beef and lamb) consumption would reduce the number of calories and land needed to produce that food-type by over ten times. If global diets slowly shifted towards plant-based proteins and nutrient-dense fruit/vegetable products, total stress on the environment would reduce. In addition, many farmers have the opportunity to improve pasture productivity with enhanced fertilizers and regenerative grazing techniques, which could increase the output of meat and reduce emissions.
- Reforest Inefficient Lands: The second greatest contributor to carbon emissions is land deforestation, particularly in equatorial regions. Investing in direct efforts to bring these fallowed lands back to productive capacity or re-foresting the lands would promote carbon sequestration and a multitude of ecosystem services. Large food companies may also commit to plant trees and sourcing products from tropical deforestation-free value chains.
- Re-orient Legislation: It may be time for consumers to take the burden of paying the ‘total price’ for food and water resources, which includes the cost of depletion and the externalities involved in using the resource. Further, subsidies and farm support should slowly start to shift towards food types that dovetail with the nutritional needs of our growing population.
Ultimately, addressing challenges pertaining to population growth and its nourishment will require active collaboration between businesses, policy makers, and consumers. Resources must be used more efficiently, and innovation will need to be spurred by public and private support. The above 10 points are topics that will exist throughout this century and likely beyond it. Many solutions to the nourishment issue are also investable opportunities, underpinned by global demographic trends. Those who have the opportunity to allocate capital also bear the responsibility to deploy their resources towards environmentally resilient strategies and regions. With investors in all asset classes assessing how they can limit their exposure to the effects of global warming, there are few industries more intertwined with climate change than agriculture. The effects of climate change are relevant to every aspect of the global food system. The long-term issues that affect the world’s agricultural output become opportunities to invest, thereby creating value for investors and society.
[i] US Census, 2019. Global Population Estimates.
[ii] Ray et al., 2013. Yield Trends Insufficient to Double Global Crop Production by 2050.
[iii] Henchion et al., 2017. Future Protein Supply and Demand: Strategies and Factors Influencing a Sustainable Equilibrium.
[iv] Ray et al., 2013. Yield Trends Insufficient to Double Global Crop Production by 2050.
[v] World Resource Institute, 2018. How to Sustainably Feed 10 Billion People by 2050.
[vi] Challinor et al., 2014. A meta-analysis of crop yield under climate change and adaptation.
[vii] United Nations, 2019. World Population Prospects 2019.
[viii] World Resource Institute, 2018. How to Sustainably Feed 10 Billion People by 2050.
[ix] FAO, 2017. New Food Balances – FAOSTAT.
[x] US Department of Agriculture, 2019. Food Expenditure Series Dataset.
[xi] Lusk, 2016. Externalities and the “Hidden” Cost of Food.
[xii] Goldewijk et al., 2017. Per-capita estimations of long-term historical land use and the consequences for global change research.
[xiii] Grantham, 2018. The Race of Our Lives: Revisited.
[xiv] World Health Organization, 2018. Global Hunger Continues to Rise.
[xv] World Health Organization, 2019. World hunger is still not going down after three years and obesity is still growing.
Note: this article first appeared in Global AgInvesting on November 15, 2019 globalaginvesting.com. This is the seventh article of an eight-part series published by GAI News that will examine how the global food system is set to be altered by eight existing trends. Each month a new installment will be released. Click the following links to read the first six installments: Part I , Part II, Part III , Part IV , Part V and Part VI.
Written by: Jeremy Stroud, Bonnefield, Agricultural Investment Analyst
Institutional investors are allocating capital with greater longevity in mind than ever.(1) With US$84 trillion of institutional assets under management in the 34 Organization for Economic Co-operation and Development (OECD) countries and a lengthening timescale of liabilities, investors are increasingly considering factors that were previously overlooked.(2) As the Canada Pension Plan Investment Board (CPPIB) stated in its last annual report, its current strategy involves “investing in quarter centuries, not quarters” by addressing factors that are projected to pose a threat to return generation and capital preservation several decades in the future.(3) While crop pollination and insect extinction may not be issues that rise to the top of an investor’s mind, they are fundamental to many economic activities in the long term.(4) One-third of the world’s food supply is reliant on external pollinators such as ants, honeybees, and bumble bees. The quality and frequency of their activity is intrinsically tied to the success of the agri-food sector and all adjacent industries. The matter is therefore worthy of rigorous consideration when investing in agriculture.
Commercial fruit and vegetable producers – a group with the most economic dependence on the ecosystem services offered by pollinators – are seeing consistently declining pollinator populations.(5) Ecosystem biodiversity is at a lower level than needed to sustain healthy colony numbers, and investors may have a part to play in solving the issue.(6) Investors with access to local expertise, an understanding of biological sciences, and flexibility in capital deployment may benefit from investing in the preservation of native pollinators as part of their asset management activities. This may also be a key factor in underwriting new investments in fruit and vegetable land, as crop yield and quality fluctuates in proportion to the amount of pollination it receives.(7) Native wild pollinators have been shown to increase the shelf life and commercial value of fruit crops versus their domestically managed counterparts.(8) From the farmer’s standpoint, permanent crops such as orchards, vineyards and bushland as well as row crops like canola, beets, and strawberries are all dependent on external pollination.
There exists a contentious issue in modern agricultural communities where pesticides such as neonicotinoids, which account for about 25 percent of global agro-chemical sales, are perceived to cause destructive effects to bee colonies. As there exists a correlation between higher pesticide use and regional colony collapse disorder frequency, countries who use the most pesticides are projected to have more rapidly declining bee populations. With this being said, a statistically significant study of causation has yet to be found, and the issue continues to be debated in agricultural circles. Exhibit 1 shows the extent of pesticide use by country.
Exhibit 1: Pesticide Use per Hectare of Cropland (kg/ha), 2014
Source: United Nations Food and Agriculture Organization, 2014
As seen in the above chart, farmers in countries such as China and the Netherlands use three times more pesticides on their crops than farmers in the U.S., UK and Canada. The latter countries may attribute part of their moderation in chemical use to the cold winters which naturally regulate pest and disease risk. Countries with year-round growing seasons and extended periods of wetness are more susceptible to the growth of undesirable organisms. In contrast, pollinators such as bees are more likely to thrive in Canada due to its lower population density, greater extent of forested regions and reduced use of pesticides compared to other agricultural producers.
A recent comprehensive study indicates that the U.S. agricultural landscape is 48 times more toxic for bees than just 25 years ago.(9) Honeybees, which are used by the US Environmental Protection Agency (EPA) as a proxy for other insect populations, are consistently declining in numbers throughout North America. As insect populations drop, bird populations that rely on insect nutrition also decline.
Despite the abundance of rhetoric surrounding honeybee colonies in the United States, the insect is not native to North America. Their genetic predecessors were first seen in Asia over 300,000 years ago and the species we see today was brought to the Americas by early colonists.(10) Honeybees may be thought of as a domesticated species, similar to livestock, that are bred, managed, and shipped from farm to farm for their pollination capacity of crops such as blueberries. While they do provide additional economic value through their productive capacity for honey, honeybees are generally less efficient than native pollinators and are prone to spreading diseases to other insects.(11) Global pollinated crops are valued at over US$212 billion per year, a value that is expected to accelerate at a pace faster than typical grain crops due to a growing global appetite for fruits, nuts and vegetables.(12) Exhibit 2 demonstrates where pollinator services provide the greatest benefits on a per hectare basis.
Exhibit 2: Pollination service contribution to the crop market output ($USD/ha)
Source: Potts et al., 2016(13)
The map above shows areas such as southern Europe and Asia as key regions where investment in pollination service could make the greatest improvement to crop market outputs. The total value of pollinator services may be attributed to thousands of species; however, and as some academics have stated, honeybees have a tendency to “hog the limelight”(14).
While honeybees are in vogue as a topic of discussion, non-bee pollinators such as flies, beetles, ants, wasps, butterflies, bats, and birds are all important contributors to global crop production.(15) Some studies estimate that these alternatives offer up to 50 percent of total pollinating services for all fruit, nut and vegetable crops.(16) With this being said, secondary pollinators are less efficient per visit, and cannot be relied upon to replace bee populations for specific crop types and climatic zones.
Considering that ecosystem fragility is a national or even continental issue, opportunities to work with governments in the form of Public-Private Partnerships may offer interregional solutions. Initiatives such as the Integrated Crop Pollination Project may be pointed to as a progressive example of the intersection between profitable farm management and environmental enhancement. An analysis from the Journal of Economic Entomology estimates that profit per acre can increase by over US $2,000 per acre of tree fruit land by incorporating alternative pollinators such as the native blue orchard bee on farms in North America.(17) This requires maintenance, expertise, and the deliberate allocation of patient capital, forgoing short-term profits for long-term gains.
Pesticides are necessary for generating the long-term crop yields that are needed to nourish the growing global appetite, but the management with which they are applied is crucial to preserving a diverse ecosystem – both above and beneath the soil. Strong evidence suggests that large-scale fruit and vegetable farmers could benefit from investing in the establishment and stewardship of wild pollinator colonies. Governments and enterprises are adopting a broader recognition for the roles that biodiversity and ecosystem services play throughout the value chain.(18) This is underpinned by a consumer base with preferences for supporting transparency and sustainability – a trend that is unlikely to disappear. Companies and investors who act early on this issue may benefit from an early mover’s advantage, industry recognition, and the development of proprietary processes.
- Ameli et al., 2019. Climate finance and disclosure for institutional investors.
- Rottgers et al., 2018. Approaches to Mobilising Institutional Investment for Sustainable Infrastructure.
- Canada Pension Plan Investment Board, 2019. Annual Report 2019: Investing for Generations.
- Schroders, 2014. The bee and the stock market.
- Cameron et al., 2011. Patterns of widespread decline in North American bumble bees. Proceedings of the National Academy of Sciences.
- Winfree et al., 2011. Valuing Pollination Services to Agriculture.
- Rader et al., 2016. Non-bee insects are important contributors to global crop pollination.
- Winfree et al., 2011. Valuing Pollination Services to Agriculture.
- DiBartolomeis et al., 2019. An assessment of acute insecticide toxicity loading (AITL) of chemical pesticides used on agricultural land in the United States.
- Wallberg et al., 2014. A worldwide survey of genome sequence variation provides insight into the evolutionary history of the honeybee.
- Graham, 2018. Beyond honey bees: Wild bees are also key pollinators, and some species are disappearing.
- vanEngelsdorp and Meixner. 2010. A historical review of managed honey bee populations in Europe and the United States and the factors that may affect them
- Potts et al., 2016. Safeguarding pollinators and their values to human well-being.
- Donkersley. 2018. Honeybees hog the limelight, yet wild insects are the most important and vulnerable pollinators
- Rader et al., 2016. Non-bee insects are important contributors to global crop pollination. Proceedings of the National Academy of Sciences
- Rader et al., 2016. Non-bee insects are important contributors to global crop pollination. Proceedings of the National Academy of Sciences
- Koh et al., 2017. Ecology and Economics of Using Native Managed Bees for Almond Pollination
- Schroders, 2014. An overview of pollinator decline and its economic and corporate significance.
Note: this article first appeared in Global AgInvesting on October 1, 2019 globalaginvesting.com. This is the sixth article of an eight-part series published by GAI News that will examine how the global food system is set to be altered by eight existing trends. Each month a new installment will be released. Click the following links to read the first five installments: Part I , Part II, Part III , Part IV and Part V.
Written by: Jeremy Stroud, Bonnefield, Agricultural Investment Analyst
“Phosphorus has no substitute in sustaining all life and food production on our planet.” – Ashley, Cordell & Mavinic
There are few nutrients more essential to the progress of industrialized society than phosphorus. The mineral is necessary for plant growth, it is finite in its accessible form and it cannot currently be replaced by synthetic means. The implementation of phosphate rock in soils has allowed our society to flourish and scale just as much as any other agricultural innovation, and as leaders, it is time to take a closer look at the implications of its use.
Incorporating mineral fertilizers, such as phosphate and ammonium nitrate, into modern cropping systems is responsible for at least 40 percent of crop yield growth since the mid-nineteenth century.  That amounts to more food than humans had produced in the previous twelve thousand years combined. Phosphorus is used by farmers to promote the storage and transfer of energy and enable processes such as photosynthesis, respiration and nutrient transportation. While manure was originally used for its phosphorus content, industrialists in central Florida found that phosphate-rich rocks could be mined and applied to our soils for the same purpose.  While nitrogen, the other major element for plant growth, may be formed through naturally occurring cycles, phosphorus typically cannot. Here lies the crux of the matter: the agricultural sector is currently mining and using phosphate at an unsustainable pace and it will be farmers, particularly in developing countries, who will feel the effects most profoundly.
Growing Demand and Shrinking Supply
Last year 270 million tonnes of phosphate were mined throughout the world – a 20 percent increase from 2014 levels and a 38 percent increase since 2011. For context, there are about 70 billion tonnes of known phosphate reserves, 80 percent of which is not feasible to access with current extraction technology. Modern row crop species such as corn, wheat, soy, and rice have been bred with ravenous appetites for phosphorus, and consumption has risen in a non-linear fashion since the 1960s as farms have depleted their soil’s naturally occurring nutrient stores. Some estimates suggest we will reach peak phosphorus production by 2040, others by 2070, and others in the 2100s. Regardless of the estimated timeframe, the peak may very well come, and it will likely trigger a surge in fertilizer prices for agricultural producers. The chart below demonstrates the source of phosphorus use per acre in farmland globally.
Figure 1: Historical Global Sources of Phosphorus Fertilizer, 1800 – 2010
Source: Cordell et al., 2009
In addition to the issue of its scarcity, phosphate reserves are not evenly distributed. Over 75 percent of the world’s phosphate stores are in Morocco and Western Sahara which is effectively controlled by Morocco. Massachusetts Institute of Technology estimates that we have less than 80 years of readily available deposits left at our current rate of consumption.  The image below shows the largest phosphate mine in Africa, Bou Craa in the Western Sahara, which holds about 3 percent of the world’s phosphate rock. It is the size of 3,000 football fields and utilizes a 100 km conveyor belt, the largest in the world, to move the crushed product to its coast for export.
The phosphorus dilemma has become a balancing act between applying phosphorus to increase crop yields and feed the population, while also responsibly extracting and applying the resource. Our historical practices have been heavily slanted towards the former.
Bones of Contention: Necessity Versus Excess
With only 15 percent of phosphate absorbed for plant use, surplus minerals added to the soil are generally lost due to runoff, leaching or accumulating in its non-accessible form. As dissolved phosphates reach local waterways, they activate phytoplankton growth which begins the process of eutrophication, thereby spurring mass algal blooms, fish mortality and riverbed sedimentation. Dissolved phosphates also have a tendency of entering groundwater and aquifer sources, leading to the deterioration of water health and, in some cases, contamination of drinking water. So how can we reduce reliance on phosphorus while also maintaining strong yields? How can we prevent eutrophication and ensure the plant retains more of the phosphate applied? The answers lie in responsible investing, management and oversight of farming practices. In short, reducing our phosphate use and implementing sustainable techniques could rebalance the natural phosphorus cycle.
1. Invest where phosphorus is not a constraint
Quite simply, some farming regions use far more phosphate rock per hectare than others. The European Union, Canada, and the US combined will use less than half the phosphate per hectare than China. As seen in Figure 2, Canada applies some of the least phosphate fertilizers per hectare of any major grain producer.
Figure 2: Phosphate Use per Hectare of Cropland, 2002-2014
Source: United Nations – Institute for Environment and Human Security (UN-EHS), 2015
Canadian, US and European grain farms generally require less phosphorus and potassium, yet more nitrogen fertilizer than other comparable farms in Brazil, Australia and Europe. This is due to their history of less-intensive farming practises, their colder winters, their common crop rotations, and their typical soil nutrient profiles. This allows Canadian farmers to be in a sustainable position over the next century as phosphate reserves continue to be depleted, while nitrogen requirements may be achieved through manure application and crop rotation techniques.
2. Conservation practices and biologicals
To become available for plant production, organic phosphorus may be mineralized by micro-organisms in the soil. One specific organism, a fungus known as mycorrhizae, works in a symbiotic way with over 80% of vascular crops such as wheat, corn, potatoes, and rice. It has adapted to help plants for this very purpose, with the potential to be used to increase phosphorus uptake efficiency by 50%. This is an active biotechnology that has been around for 450 million years, and its further incorporation into our crop mix could provide meaningful effects for agricultural sustainability. The use of common bush crops, such as the Mexican Sunflower, may be used as a green manure which adds organic phosphorus to the soil as well.
3. Innovation and Technology
Some researchers, governments, and startups believe that the effects of the phosphorus issue may be reduced by applying fertilizers with more precision and through recycling our existing products. Startups such as NuReSys aim to recover phosphorus nutrients from human urine. Geneticists are also working towards phosphorus efficient rice crops with larger root systems which would be able to extract more available phosphorus in the soil. In addition, targeted fertilizer applications can reduce the amount of phosphate used by farmers, thereby cutting their costs and mitigating potential nutrient leaching. As farmers and businesses incorporate more technology with environmentally beneficial characteristics, the challenge of phosphorus overuse may begin to turn into an opportunity.
Throughout this series, the same point has been made; those who have the opportunity to allocate capital also bear the responsibility to deploy their resources towards environmentally resilient strategies and regions. A Greek Proverb may articulate this notion more eloquently:
“A society grows great when old men plant trees whose shade they know they shall never sit in.”
 Stewart and Roberts, 2012. Food Security and the Role of Fertilizer in Supporting it.
 Faradji and de Boer, 2016. How the great phosphorus shortage could leave us all hungry.
 US Geological Survey, 2019. National Minerals Information Center, Phosphate Rock Statistics and Information.
 Global Phosphorus Research Initiative, 2019. National Strategic Phosphorus Advisory Group.
 Cordel et al., 2009. The story of phosphorus: Global food security and food for thought.
 Massachusetts Institute of Technology, 2016. The Future of Strategic Natural Resources: Fighting Peak Phosphorus.
 National Aeronautics and Space Administration, 2018. Earth Observatory.
 Cho, 2013. Phosphorus: Essential to Life—Are We Running Out? .
 NuReSys, 2019. Intergral Phosphate Management.
 Kant et al., 2017. Phosphorus Efficient Phenotype of Rice.
 Agri-Food Canada, 2019. Variable rate nutrient application.
Note: this article first appeared in Global AgInvesting on September 4, 2019 globalaginvesting.com. This is the fifth article of an eight-part series published by GAI News that will examine how the global food system is set to be altered by eight existing trends. Each month a new installment will be released. Click the following links to read the first four installments: Part I , Part II, Part III and Part IV.
Written by: Jeremy Stroud, Bonnefield, Agricultural Investment Analyst, and Michael DeSa, AGD Consulting Founder
With the advent of sprawling wildfires throughout Brazil’s Amazon rainforest, politicians, businesses, and investors in timber and agriculture within the region are prompted to sincerely consider the ramifications of their asset management practices and investment decisions. While many forest fires occur as a natural and beneficial reaction of the local ecological cycle, this is not the case for the Amazon. Despite the fact that these fires have taken place in Brazil’s dry season, INPE, the Brazilian national space agency, has documented an 83 percent increase in fires since the previous year, while deforestation has increased by 67 percent since January 2019. The El Niño dry period likely contributed to the severity, although INPE has directly connected these fires with the recent onslaught of deforestation and greenfield agricultural development.
The Amazon basin supports over half the world’s tropical rainforests and currently acts to offset approximately one quarter of human-caused greenhouse gas emissions. Events taking place in Brazil serve as a vivid reminder of weather volatility and its intersection with global agriculture. This issue explores severe weather events, natural disaster risk in farming regions and the implications for investors. The findings reaffirm similar themes in past installments: those who have the opportunity to invest in land and water resources also bear the responsibility to allocate their capital towards environmentally resilient regions and strategies.
While we previously wrote about global warming, carbon emissions, and the long-term growth of global surface temperatures, this article reflects the opposite side of the climate change coin. It pertains to the immediate consequences of severe weather events and natural disasters. As temperatures increase, additional moisture is retained in the air which leads to heavier downpours and a higher frequency of extreme precipitation events. On the other hand, warmer weather also accelerates the pace of evaporation, leading to circumstances where droughts and wildfires may prevail. Agriculture has always succumbed to the forces of unsettled weather behavior, although trends project increased volatility in each of the next several decades. Extreme events are accelerating at a tremendous pace, and Figure 1 exhibits just how fast it is happening.
Figure 1: Occurrence of Global Natural Disasters
Source: International Disasters Database (EM-DAT), GMO Investments, 2018
According to the UN’s Food and Agriculture Organization (FAO), over 20 percent of economic losses due to natural disasters are absorbed by agricultural businesses worldwide with natural disasters accounting for approximately one quarter of annual crop losses. Beyond losses to farm yields, severe storms and droughts also constrain logistical systems that service the agri-food industry. River traffic throughout the Mississippi River, for example, was reduced significantly after a drought in 2012 narrowed the route. We also witnessed substantial flooding this spring in the U.S. Midwest where farmers experienced delayed planting, destroyed facilities, and increased spoilage for crops in storage.
Although natural disasters are indiscriminate in their movements, each geography faces a different level of risk. Figure 2 depicts each country’s susceptibility to natural disaster risk from the 2018 World Risk Report by the United Nations Institute for Environment and Human Security. It offers insight on a country’s exposure and vulnerability to potential natural disasters by analyzing historical data. The study ranks 173 countries by measuring an average citizen’s probability of being exposed to natural hazards such as floods, storms, droughts, sea level events, and earthquakes.
Figure 2: World Risk Report – Risk of an Extreme Natural Event Leading to Disaster
Source: United Nations – Institute for Environment and Human Security (UN-EHS), 2018
The multi-year United Nations analysis identifies Central America, West and Central Africa, Southeast Asia, and Oceania as the areas with the highest global disaster risk. It indicates that while many countries are improving their disaster preparedness, extremes in weather systems are expected to occur more frequently with heightened potential for negative consequences. Although the concern is growing throughout the world, Canada and Europe’s diversified geography and cooler climate position them as some of the lowest risk regions in the world. Countries with robust national emergency management systems have also helped to partially mitigate the devastating effects of severe weather and geological systems.
The Modern Investor’s Response to Catastrophe
The Cambridge Centre for Risk Studies uses a series of scenario analyses to assess the impact of hypothetically likely natural disasters on financial markets and investment portfolios. The study forecasts significant economic consequences for equity markets if any of these events were to occur. For example if Mount Rainier, an active volcano in the state of Washington, were to erupt, the S&P 500 and Dow Jones Industrial Average are expected to suffer a 20 percent loss. Other scenarios that were studied include floods, hurricanes, and earthquakes, and although each have a low probability of occurrence, they collectively exemplify the potential for a large destructive event.
There are few winners in the wake of catastrophe, as production capacity, investor confidence, and local infrastructure all suffer. As such, traditional portfolios consisting of public equity and fixed income assets are particularly vulnerable to natural disaster events due to their global interconnectedness. In the event of an extreme disaster with over US$1 trillion in damages, returns are expected to suffer in a non-linear manner with their risk-tolerance as global markets are perturbed. Investing in a diversified portfolio of real assets such as infrastructure and farmland in low-risk geographies may act to offset economic losses brought forth by severe environmental events and fluctuations.
Investors may also consider allocating capital towards regenerative agricultural practices and land portfolios with disaster prevention infrastructure in place. Regenerative agriculture, which works to increase soil organic matter content, will increase the resilience of soil structures, thereby increasing moisture retention during times of drought and reducing topsoil erosion in heavy downpours.
Recent events have provided all agricultural investors, no matter their exposure to specific geographies, commodities, or strategies, with the opportunity to consider the long-term ecological consequences of their actions. Preservation of capital with positive environmental and economic returns may be achieved with careful due diligence and investment discipline. Critically acclaimed investor, Jeremy Grantham, may have best articulated the matter in his most recent report:
“We’re racing to protect not just our portfolios, not just our grandchildren, but our species. So get to it.”
 Paraguassu, 2018. Reuters. Amazon burning: Brazil reports record forest fires.
 Spring, 2019. Reuters. Why are the Amazon fires sparking a crisis for Brazil – and the world?
 Garrett, 2018. In Partnership With Boston University. Strict Amazon protections made Brazilian farmers more productive, new research shows.
 Exbrayat, Liu & Williams, 2017. Impact of deforestation and climate on the Amazon Basin’s above-ground biomass during 1993–2012.
 Cho, 2018. Columbia University. How Climate Change Will Alter Our Food.
 Jeremy Grantham, 2018. The Race of Our Lives, Revisited.
 Food and Agriculture Organization, 2015. The Impact of Natural Hazards and Disasters on Agriculture.
 Heintze, Hilft, Mann et al., 2018. World Risk Report.
 Heintze, Hilft, Mann et al., 2018. World Risk Report.
 University of Cambridge, 2018. Cambridge Centre for Risk Studies. Impacts of Severe Natural Catastrophes on Financial Markets.
 University of Cambridge, 2018. Cambridge Centre for Risk Studies. Impacts of Severe Natural Catastrophes on Financial Markets.
Note: this article first appeared in Global AgInvesting on July 24, 2019 globalaginvesting.com. This is the fourth article of an eight-part series published by GAI News that will examine how the global food system is set to be altered by eight existing trends. Each month a new installment will be released. Click the following links to read the first two installments: Part I , Part II and Part III.
Written by: Jeremy Stroud, Bonnefield, Agricultural Investment Analyst
“The global average temperature for June 2019 was declared the hottest ever recorded for the month.”
Headlines such as these occur with such regularity that we tend to become desensitized to the magnitude of the statement. News of record-high temperatures, melting glaciers and unprecedented carbon dioxide (CO2) levels have become so commonplace that they are now a focal point of political discourse and investment decision-making. Investors in all asset classes are assessing how they can limit their exposure to the effects of global warming, and there are few industries more intertwined with climate change than agriculture. Capital deployed in the agri-food industry, and more specifically in farmland, is set to face structural challenges in the long-term. Structural challenges such as these naturally lead to opportunities for investors with the foresight and patience to execute on long-term investment theses. This article explores how rising temperatures and CO2 levels are projected to affect global land suitability over the course of this century, and present the select few regions which may benefit from these new climatic conditions.
Carbon Dioxide and Heightened Temperatures
Temperatures are set to accelerate at a pace greater than we have seen since the glacial retreat of the last ice age as atmospheric CO2 has reached its highest level in the past three million years. Warming occurs when certain greenhouse gases, such as CO2, restrict heat from escaping the atmosphere. In the short term, higher CO2 levels may benefit crops such as soybeans and wheat due to increased photosynthesis capacity and water retention; however, the greater picture appears quite different. Figure 1 portrays the earth’s average CO2 levels over the past 800,000 years.
Figure 1: Historical CO2 Levels in Parts Per Million
Source: NASA, National Oceanic and Atmospheric Administration, Luthi, D., et al., 2018
While global surface temperatures have already increased by about 1ºC since 1950, global temperature is projected to increase by another 2.5ºC in the next 40 years and up to 4.5ºC by the end of the century, at the current pace of emissions. This is poised to cause depletion of water resources, rising sea levels and severe pressure on our collective environmental system. Figure 2 demonstrates the historic global surface temperature compared to the 1951-1980 average since 1900.
Figure 2: Global Surface Temperature Compared to 1951-1980 Average
Source: NASA Goddard Institute for Space Studies, GMO Investments, 2016
Dropping Yields and Changing Fields
As each plant variety has a designated temperature range within which it can grow and reproduce, additional heat stress caused by global warming will stunt various crops’ ability to pollinate, retain moisture, and develop roots. Increasing temperatures, therefore, are expected to decrease the land area conducive to the production of high-calorie crops such as wheat, soy, and corn. A National Academy of Sciences study estimates a 5 to 15 percent decrease in grain crop production for each degree Celsius over current levels. With temperatures currently rising, a rebalance of the agrarian equilibrium and a loss of biodiversity in oceans and forests is already taking place.
Overall crop yields are expected to begin their decline by 2030, and certain northern regions will be relied on to meet global nutritional needs. Diseases, weeds, and insects, which thrive in warmer conditions, are expected to multiply and further restrain yield growth, while food nutrition is set to drop. Total yield decline is attributed in part to water scarcity and greater rainfall variability, the proliferation of pests, extreme heat events, and the reduction of multi-cropping in equatorial regions. The International Food Policy Research Institute also recently published a study which found that plant nutrient availability is forecasted to significantly decline as a result of growing atmospheric CO2 levels. Protein, iron, and zinc could each decline by between 15 and 20 percent in global availability over the next 30 years according to their model. In short, the world’s growing demographic will require more food to supply consumers with the same nutritional profile that we currently enjoy. Our collective ability to achieve this depends on an increase in crop yield per unit of farmland, in addition to an increase in global farmable land base.
Figure 3 depicts the forecasted change in farmland suitability to grow the 16 most common crops from averages in 1981–2010 to 2071–2100. Green areas exhibit an increase in suitability, while yellow and brown colored regions reveal where a decrease in land suitability occurs.

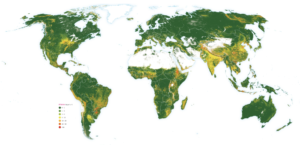

Figure 3: Change in agricultural suitability between 1981–2010 and 2071–2100.
Source: Zabel, Putzenlechner & Mauser, 2014
The researchers who produced this map use an internationally recognized climate scenario model to determine the climatic and topographic changes that are expected by the late 21st century. The findings from this study are clearly stated: higher latitude areas such as Canada, Norway, China, Russia, Mongolia, and parts of the United States are expected to grow in suitable land area by 2100. On the other hand, many warm-climate regions, which are accelerating in population growth and therefore nutritional needs, will face reduced land suitability.
Investing Where It’s Cool: The High Latitude Thesis
A longer growing season and additional heat units for crops such as wheat and corn will increase the area in northern regions that are conducive to temperate cereal cultivation. Figure 4 shows the boreal forest in green, along with the estimated movement of agricultural suitability boundaries in the northern hemisphere.
Figure 4: Northward shift of the agricultural climate zone under 21st-century global climate change King et al., 2018
By 2099, about 76 percent of the area shown in green above is expected to reach crop feasible growing conditions compared to the current 32 percent. For long-term investors with investment horizons of over 20 years, boreal regions such as the Clay Belt in Ontario and the Northern Prairies of Alberta are forecasted to become viable for large-scale grain and pulse production as temperatures increase. In these regions, the sparse populations and significant levels of capital needed to prepare the land for production have kept asset prices reasonably low. With the correct local knowledge and capital flows, tens of million acres in Canada and Russia that were previously untouched could emerge as the final frontier of scalable farmland use.
The high latitude investment thesis is not only underpinned by an increase in suitable land, but also an expected increase in crop yields. Figure 5 demonstrates the projected change in yields by sub-region between 2010 and 2050 considering a 3ºC increase in temperature from pre-industrial levels.
Figure 5: Projected Impacts on Crop Yields in a 3°C Warmer World
Source: World Resource Institute, The World Bank, 2010
The high-latitude investment thesis calls to immediate question the fact that many forested areas, which act as carbon sinks, would need to be converted to scalable crop production. It is then crucial for investors and policymakers to consider alternatives for preserving global ecosystem services, perhaps by investing in carbon offset programs or tree re-planting projects. With the knowledge and technology now available, investors are also urged to promote and implement production techniques that preserve and enhance affected ecosystem services. Evidence indicates that investment in regenerative agricultural practices, sustainable intensification, and maintaining soils with high levels of organic matter may mitigate some externalities of a warming planet. Investment in foundational infrastructure strategies such as community development, transportation, green energy, and processing facilities could create opportunities for investors to diversify cash flows while integrating synergies with their farmland investments. A portfolio such as this would be a sustainable step forward to providing the world with the food it needs.
 National Oceanic and Atmospheric Administration (NOAA), 2019
 Yale School of Forestry and Environmental Studies, 2019
 NASA, Climate Services, 2018
 California Agriculture, 2018
 Jeremy Grantham: The Race of Our Lives, Revisited, 2018
 Intergovernmental Panel on Climate Change, 2018
 National Academy of Sciences, 2011
 Intergovernmental Panel on Climate Change, 2018
 Zabel, Putzenlechner & Mauser, 2014
 International Food Policy Research Institute, 2019
 Zabel, Putzenlechner & Mauser, 2014
 King et al., 2018
 Climate smart or regenerative agriculture? Defining climate policies based on soil health, 2018
Note: this article first appeared in Global AgInvesting on June 10, 2019 globalaginvesting.com. This is the third article of an eight-part series published by GAI News that will examine how the global food system is set to be altered by eight existing trends. Each month a new installment will be released. Click the following links to read the first two installments: Part I and Part II
Primary authors: Jeremy Stroud, Bonnefield, Agricultural Investment Analyst, and Michael DeSa of AGD Consulting
“In all affairs it’s a healthy thing now and then to hang a question mark on the things you have long taken for granted.” – Bertrand Russell
There is every reason for us as consumers to pause and consider something that is far too often taken for granted – water. It has become a truism to say that civilization would not exist without the reliability of our earth’s accessible water resources. Our species’ ability to evolve past a Paleolithic state is a direct result of our advances in freshwater use, from leveraging gravity for flood irrigation to controlling water flow with aqueducts to the implementation of digitally integrated irrigation systems.
Societal reliance on fresh water has been presupposed for so many centuries that many of us overlook the ongoing constraints set to fundamentally alter the way we use this scarce resource. This article aims to review a few of the many water challenges affecting the global agri-food sector and places a spotlight on investable regions which may weather the storm most effectively.
When assessing freshwater availability, it is essential to consider the components of the water system within and beyond human control. The thought of addressing all water challenges may be an overwhelmingly broad topic, so the conversation becomes more actionable when we focus on components that can be changed rather than those that cannot. Of freshwater stores, ‘blue water’ is the most pertinent topic to international agriculture as we have little control over deviation in rainwater occurrence and quantity. Water scientists place particular emphasis on blue water within the context of a changing climate – namely as it pertains to projected increases in the frequency and severity of global drought .
Common Freshwater Classification
Less than three percent of the earth’s total water stock is fresh water and nearly four-fifths of the three percent are permanently frozen and inaccessible. After factoring in areas of excessive pollution, acidity and salinization we are left with less than one-tenth of a percent of fresh water supply available for human, agriculture and industry use. In other words, this equates to about 10,000,000 cubic km of fresh, accessible ground and surface water. While freshwater is limited in volume, humans are continuing to increase consumption per capita on an annual basis, and at a pace that far exceeds the rate of replenishment. Here lies the bone of contention. It is not a question of whether we are using scarce water resources at an unsustainable pace, but rather a discussion of what can be done about it.
Blue Water – Consumable and Irrigatable
Water use for irrigation is among the most heavily contested aspects of the modern agricultural system. Agriculture and blue water depletion are inextricably linked. According to a recent report from IPBES, nearly 75 percent of the world’s accessible freshwater consumption is dedicated to crop and livestock production and nearly 40 percent of the planet’s current food supply is reliant on irrigation . This issue becomes further pronounced when we consider that nearly half of the world’s population is living within immediate proximity to river basins and aquifers with the ‘severe water stress’ classification . Evidence suggests that over-usage and maltreatment of accessible freshwater resources could cause a contraction in global productivity growth and therefore a potential decline in living standards .
Most of our planet’s accessible fresh water is confined in shallow aquifers beneath the earth’s surface. A high proportion of these non-renewable aquifers are reaching critical points of depletion, and they are commonly located in areas which fall beneath the world’s most populous and important agricultural regions. A study from the Proceedings of the National Academy of Science estimates that up to 100 million irrigated acres may be unable to draw sufficient water resources to support production by the end of the century. This could lead to drastic decreases in crop yields if rainfall averages cannot make up the difference. The Ogallala aquifer beneath the US corn belt, for example, is particularly threatened by overuse and pollutant contamination. A reversal of irrigated land to dryland is expected to occur in regions such as California’s central valleys, the US Mid-West, the North-China Plain, and the Arabian Basin. In each of these regions non-renewable groundwater is a primary source of irrigation. It is not coincidental that each of these regions have been subject to significant water stress in the past decade.
Blue water depletion is a complex issue that demands collective action – not solvable by implementing any single policy, action or framework, but rather it requires a cooperation between all levels of business, government and society. Irrigated farms which source their water from continually measured, renewable deposits (such as sustainably disbursed lakes and river systems) may be the most productive, economical and sustainable solution to the forthcoming water scarcity challenges.
Consumers may look at food-induced water depletion as a direct product of farm activity, while the reality more complex and integrates all facets of society. Farmers, like any other business, are economic entities that aim to optimize output, scale and profitability. In the agri-food sector this is accomplished by efficiently fulfilling the needs of consumers. With a growing population and an increasing appetite for high-quality proteins, fruits and vegetables, consumers tend not to realize the macro-effects of their individual purchasing decisions but rather focus on the needs of the household or community.
As it stands, we have a developed consumer base that is unaware that we effectively outsource water depletion through our demand for high water-footprint foods. An often cited example is China’s import of water-intensive soybeans from areas such as Brazil which has led to indirect pressure on deforestation of the Amazon. We have historically been able to purchase food and industrial products with the cost of water extraction embedded in the price, but often not the true cost of water depletion. This distinction is vital to the topic of global water management, where governments often subsidize industry water use as a regular cost of doing business in order to provide consumers with food options that meet their demands.
Most experts believe these consumer trends towards high-footprint foods are firmly established, although as shoppers begin to realize the increased demands on water a result of their decisions, they too may begin to search for more sustainable and renewable ways to use the available water supply. It is here where we see a long-term investable opportunity.
Farmland Investing: Go Where the Renewable Water Flows
The pursuit of a sustainable and profitable agricultural investment portfolio may be achieved through consideration of macro-climatic indicators, strategic selection and rigorous due diligence. While this article refers to agricultural investing from a farmland perspective, there is also a case to be made for investments in agricultural technology, including efficient irrigation, wastewater reuse, soil moisture sensing and seed resilience technologies.
A structural decline in crop production is expected to create supply shocks in the future, potentially raising agricultural commodity prices in the long term. The Intergovernmental Panel on Climate Change (IPCC) estimates that crop yields could decline by up to 12 percent as a consequence of water scarcity in the next three decades . The thesis of investing in ‘water-rich’ regions is predicated upon their capacity to weather an incoming storm of potential water issues:
~ Invest where irrigation is less necessary for productive agriculture: Less than four percent of Canada, Brazil, Russia and Australia’s farmland is irrigated compared to about ten percent in the United States and 37 percent in India  (See Figure 2). Productive agricultural regions that are less dependent on irrigation tend to hedge the risk of groundwater depletion and/or pollution.

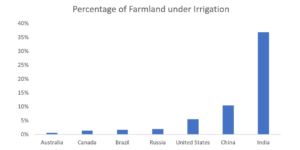

Figure 2: Percentage of Farmland Under Irrigation
Source: The World Bank World Development Indicators, 2015
~ Analyze metrics to determine where water shortages are expected to fall: Statistics such as renewable fresh water per capita are helpful in determining where water crises are expected to occur. Other helpful statistics include aquifer replenishment rates, variable on-farm water requirements, and the legal parameters of water resource allocation. While Canada, Russia, Australia, and Brazil use relatively little water for irrigation compared to the rest of the world, they hold the most fresh water reserves per capita of all agricultural exporters with 80,200 cubic meters . Further projections suggest that warm-climate regions are likely to experience decreasing precipitation levels in the next century while polar and continental regions may encounter more rainfall . Although each country’s water rights laws and natural precipitation levels may vary, the thesis holds over a long-term geographic perspective while political frameworks may change. This sentiment should be further examined at a regional level to assess where irrigating farmland may be achieved most sustainably.

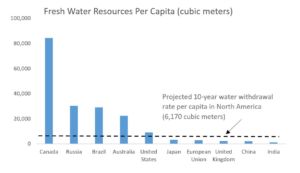

Figure 3: Global Freshwater Resources per Capita
Source: The World Bank, 2014
For as long as humans inhabit the planet, unpolluted, fresh, water will be a finite resource with limited supply and consistent demand. Although specific water reserves appear to have promise over the next several decades, it is a responsibility for farm owners, governments, consumers, and investors to responsibly regulate withdrawal and avert contamination. Freshwater depletion is an agricultural issue just as much as it is an environmental one. Here lies a rare circumstance where economic returns may be matched by environmental impact. Agricultural investors have a distinct opportunity to allocate capital towards efficient irrigation and farmland portfolios in regions that have the replenishing capacity to withdraw water resources sustainably.
Note: this article first appeared in Global AgInvesting on April 23, 2019 globalaginvesting.com. This is the second article of a series published by GAI News. The first installment can be found here. The eight-part series will examine how the global food system is set to be altered by eight existing trends.
Primary author: Jeremy Stroud, Bonnefield, Agricultural Investment Analyst
Contributing author: Michael DeSa, AGD Consulting
“The nation that destroys its soil destroys itself.” – F.D. Roosevelt
The oft-imagined idea of fertile, pristine farmland as far as the eye can see is drifting towards the past. Land loss is more than just a blow to those who grasp on to a pastoral ideal of the countryside; rather it marks a shift in the global supply dynamics of land resources. The literature presents a singular case: more topsoil is removed from production than is added, with some academics estimating a reduction of about 1 percent each year.
Healthy topsoil is home to billions of thriving micro-organisms which allow crops to be optimally produced. As the top soil is physically eroded or disrupted, its biological matter also declines, and therefore its capacity to produce optimal yields is compromised.
Land scarcity is not a new concept, although with the level of impact it is expected to have on society, it is a topic that deserves more discussion. In the first article of this series, we discussed the effects of urbanization on the global agricultural system. This commentary will examine another piece of the farmland usage puzzle and its impact on our collective accessibility to food: land degradation and soil erosion.
Land degradation refers to human-derived processes which lead to the decline in ecosystem functions. It manifests itself in three different forms:
physical: compaction, desertification, and soil erosion (which is the largest contributor to productivity loss)
chemical: soil acidification and salinization
biological: soil organic matter reduction and loss in biodiversity
Farmers work in different ways to combat chemical and biological forms of land degradation, although the most persistent and arguably the most difficult to mitigate of these, is physical degradation of topsoil. While usually considered as a local concern, soil erosion, compaction and other types of land degradation are globally consequential issues and evidence suggests they will have direct implications for the world’s food supply.
The Inter-Governmental Science-Policy Platform on Biodiversity and Ecosystem Services (IPBES) is widely considered the international authority on bio-ecological matters. The organization recently concluded a three-year study analyzing the status of global land and soil quality, which collected insights from over one hundred of the world’s leading subject experts. They found that approximately 3.2 billion people, or nearly 43 percent of the world’s population, experience negative economic impacts from land degradation in industries varying from agriculture to tourism, to mining. The effects of land degradation are expected to accelerate in magnitude as the degree of high-volatility weather systems increase.
The Causes and Status of Land Degradation Globally
Erosion takes place when soil is left uncovered and the particles are washed or blown away. Heavy downpours, surface water ponding, intensive land use and mechanical human activities are continuing to reduce top soil – particularly in the most intensively farmed regions. For example, China and India are losing topsoil at three to four times the rate of North America. Land erosion and degradation also occurs due to tillage, deforestation, and an increase in rainfall intensity. One study indicates that there has been a 53 percent increase in the number of extreme rainfall days recorded globally over the past 30 years, thereby leading to record levels of erosion and runoff.
In the past 20 years, a greater proportion of rainfall has arrived in the form of extreme single-day weather events than has ever been recorded. Figure 1 demonstrates the percentage of land area in the contiguous United States affected by extreme precipitation in each year as reported by the National Oceanic and Atmospheric Administration. The orange line represents a nine-year trailing average, highlighting a significant fact for soil erosion: the average percentage of US land affected by extreme one-day rain events has increased from 7 percent in the 1970’s to 18 percent in 2015.

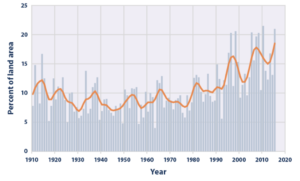

Figure 1: Extreme One-Day Weather Events in the Contiguous United States, 1910-2015
Erosion naturally leads to further soil compaction, nutrient degradation and impaired water drainage, which reduces the overall productive capacity of the land. With nearly 60 percent of the world’s farmland considered degraded, our arable land base is steadily declining.
Figure 2 demonstrates where the greatest soil erosion concerns are expected to occur in the future based on a detailed joint study by the European Commission and the University of Basel. The R-factor is the rainfall-runoff erosivity factor, or an annual summation of erosion index (EI) values (erosion force of rainfall) in a normal year’s rain.
Figure 2: The Geo-Spatial Pattern of Soil Erosion, 2018
Opportunity Amidst the Loss
As soil degradation increases the scarcity of fertile land, it also creates the need to incorporate sustainable farm management practices and pursue responsible investment goals. Farmland investors and stakeholders should consider five primary categories in their path to mitigate soil erosion effects and potentially reap the upside potential that follows:
1.) Deal Sourcing & Region Identification: Investors should look to identify farming regions with topsoil abundance, low wind and flood risk, and relatively flat or rolling terrain. Investment teams have the responsibility to review an area’s historical and forecasted climatic risks in advance of deal selection. This includes past precipitation and temperature averages, available soil and yield mapping data, historical input usage, previous environmental issues and/or remediation measures. Investors may also want to consider geographic regions that successfully practice no-till land preparation, such as Argentina, Australia, and Canada.
2.) Due Diligence: Most farmland asset managers should be able to leverage geo-spatial information data and measurement tools to determine how past farm imagery compares to the current status of the field. It is also worthwhile to consider warning signs such as noticeable compaction, dispersed ponding, and natural drainage flows.
3.) Sustainable Farm Management Practices: Farm operators have the opportunity to replenish topsoil quality through the implementation of practices such as no-till and low-till farming, as well as the regular use of green manure crops to enhance soil biodiversity, structure, and to replenish nutrients. Further, integrated pest management (IPM) plans leveraging biological and mechanical processes can control pests while reducing chemical pesticide use.
4.) Investment in Loss Prevention & Restoration: Capital expenditure in ditching, tile drainage, external tree-borders, berms, and riparian-buffer maintenance can control soil erosion effects while also mitigating natural disaster risks such as flooding, wind damage, and surface ponding. For permanent and specialty crop strategies, the implementation of technology and products offered by groups like the Land Life Company – a startup that is working to restore ecosystems in degraded soil regions through reforestation efforts – should be considered CapEx well spent.
5.) Long-term Tenure Mindset: Investors who plan to own and/or operate farmland for the long-term will be naturally incentivized to adopt sustainable land management practices which can promote the health and productivity of soil. Farmland owners should be cautious of short-term (less than three year) lease structures which may create the risks of nutrient mining or high-intensity agricultural practices.
With land degradation on the rise, the tools to reduce soil loss and protect these investments are slowly becoming more available and adoptable. As soils from intensive agricultural regions continue to deplete, we hypothesize that land managed with sustainable practices shall prove to be significantly more valuable in the decades to come.
 Pimentel and Burgess, “Soil Erosion Threatens Food Production,” 2013
 IPBES, 2018
 IPBES, 2018
 IPBES, 2018
 IPBES, 2018
 David Pimentel, as quoted in a Cornell University Article, 2006
 Dourte et al., Climate Risk Management Journal, 2015
 National Oceanic and Atmospheric Administration, 2016
 Stanford University Course on Topsoil Loss, 2015
 European Commission Joint Research Centre, World Atlas of Desertification, 2018
 European Commission Joint Research Centre, University of Basel and Centre for Ecology & Hydrology, 2017
 European Commission Joint Research Centre, World Atlas of Desertification, 2018
 Jeremy Grantham, The Race of Our Lives: Revisited, 2018
 Land Life Company, 2019
Note: this article first appeared in Global AgInvesting on March 21, 2019 globalaginvesting.com. This is the first article of a series published by GAI News. The eight-part series will examine how the global food system is set to be altered by eight existing trends.
Primary author: Jeremy Stroud, Bonnefield, Agricultural Investment Analyst
Contributing authors: Michael DeSa, AGD Consulting and Solomon Tiruneh, AGD Consulting
It is no secret that our global food system is in a state of flux. In the next century, we will be challenged to produce more food with less land, by fewer farmers, and with increasingly scarce water resources. Although evidence suggests that we as humans have the capacity to achieve this, it is imperative to explore what changes can be expected from the planet’s climatic and demographic variability. The purpose of this article series is to provide insight on these changes and place a spotlight on the regions which may weather the change most effectively. While other parts of the world are projected to experience comparatively strenuous conditions, parts of the Canadian and U.S. agricultural systems are positioned to endure and even prosper in the face of a changing climate and demographic.
A combination of industry and academic literature indicates eight existing trends that are set to alter the structure of our global food system. A growing body of data indicates that these factors may determine our collective success or failure:
1. Urban expansion
2. Land erosion and degradation
3. Fresh water scarcity and agriculture’s reliance on irrigation
4. Increasing temperatures and CO2 levels
5. Volatility of weather systems
6. Global phosphate over-use
7. Bee fatalities and pollination
8. Population growth in proportion to arable land
As with any changing market, structural movements can lead to inefficiencies which are then corrected by the activities of market participants. In this case the global agri-food sector could face extensive resource constraints and shifts in pools of capital over the next half century. This may establish the environment for public and private entities to create efficiencies by allocating capital to new infrastructure projects, accessible financing alternatives, synergistic consolidation, progressive policies, and industry-led innovation.
Let’s start with a topic that is close to many of our homes – urban expansion:
It is a modern reality that some of the world’s most fertile soil is now beneath several layers of concrete. Cities were originally established based on their proximity to agriculturally productive land and its strategic significance. As economies continue to shift from rural to urban residency, the world’s major cities naturally expand outwards. Unless geographic or regulatory restrictions exist, cities extend by developing into farmland areas that had historically been the source of their nourishment. Currently, populations in developing economies are urbanizing at a rapid pace with 40 percent of urbanization taking place in developing slums – a trend that is expected to heighten regional socio-economic disparities and sanitary-access concerns. The global urban population is set to increase by 2.5 billion people by 2050, with India, China, and Nigeria accounting for nearly 900 million additional people. Figure 1 highlights the global shift in urban vs. rural populations.
Figure 1: Urban vs. Rural Dwelling Projection, 1950 – 2050
Source: United Nations, World Urbanization Prospects – 2018 Revision
Urban expansion is projected to reduce our global cropland area by 47 million acres between 2015 – 2030, and it is taking place on cropland that is 77 percent more productive than average. This is an especially concerning issue in the developing world where population growth will expand at the highest rate throughout ‘mega-urban’ areas. Nearly 90 percent of the world’s cropland loss due to urban expansion will take place in Asia and Africa. Figure 2 exhibits the fertile areas which will be hit hardest by urban expansion.
Figure 2: Urban Expansion Projection Map, Circa 2030
Source: Proceedings of the National Academy of Sciences, 2016
Crop growing regions are affected by urbanization to a far lesser extent in countries with dispersed population centers, an abundance of land resources, and proactive land-use regulations, such as in Canada, the U.S., and Australia. In Canada, for example, the Golden Horseshoe Greenbelt and Agricultural Land Reserve Acts collectively protect more than 13 million acres of productive farmland. Although it may make immediate economic sense for cities to develop outwards instead of upwards, natural geographic barriers to urban expansion have contributed to some of the most prosperous and concentrated cities on the planet, such as New York and Singapore. Increased urban density (whether a consequence of necessity or planning) has also been correlated to increased productivity and wages due to the cost savings derived from urban agglomeration.
Urban Expansion and Agricultural Investing
With the emergence of concerns relating to urban expansion and its effects on agriculture, our minds naturally lean towards the merits of indoor farming as a solution to farmland loss. While urban and greenhouse farming projects have developed rapidly due to recent technological advancements and access to venture capital funding, the types of foods grown in enclosed settings are typically exclusive of the grains, oilseeds, pulses, field vegetables, and permanent crops grown on farms. The future of our food system will likely consist of a complementary combination of climate-controlled indoor and traditional outdoor farming methods rather than a slant towards just one. Investments on both sides of the agricultural production spectrum are expected to generate similar risk-adjusted returns over the long term, albeit with differing levels of volatility, asset capital appreciation, cash flows, operational risks, and sensitivity to commodity price fluctuations.
Within the context of global urbanization, farmland located on the perimeter of a growing city will typically command price premiums for development potential. This land is no longer valued for its productive agricultural capacity and would be considered a different investment class altogether. Some of the safest and most fundamentally-sound agricultural investments available are located in close enough proximity to supply growing cities with fresh food, yet far enough away not to have development premiums. These assets naturally lend themselves to the pursuit of sustainable development goals through farmland protection and their function in nourishing a demand-oriented market. Further, they retain logistical and shelf-life efficiency, particularly for direct-to-eat goods. An investment of this type also may be optimized and expanded in the long term to increase economies of scale and capacity for production of different crop types.
As productive crop growing land becomes increasingly scarce over the next century, the significance of fertile land assets have every reason to flourish.
1 United Nations Water Facts, 2018
2 Proceedings of the National Academy of Sciences, 2016
3 Proceedings of the National Academy of Sciences, 2017
4 Journal of Agricultural Studies, 2014
5 Journal of Sustainability: Science, Practice, and Policy, 2017
United Nations (2018). World Water Development Report, Nature-based Solutions for Water. http://www.unwater.org/publications/world-water-development-report-2018/
D’Amour et al. (2016). Proceedings of the National Academy of Sciences. Future urban land expansion and implications for global croplands. https://www.pnas.org/content/114/34/8939
United Nations (2018). World Urbanization Prospects, 2018 Revision.
Güneralp et al. (2017). Proceedings of the National Academy of Sciences. Global scenarios of urban density and its impacts on building energy use through 2050. https://www.pnas.org/content/early/2017/01/03/1606035114
Banerjee & Adenaeuer (2014). Journal of Agricultural Studies, MacroThink Institute. The Economics of Vertical Farming. http://www.macrothink.org/journal/index.php/jas/article/view/4526
Benke & Tomkins (2018). Journal of Sustainability: Science, Practice, and Policy. Future food-production systems: vertical farming and controlled-environment agriculture.
When we founded Bonnefield ten years ago, we purposely set out to devise a business model that would create value for our investors by creating value for farmers. We believed then, and believe even more strongly now, that creating value for farmers naturally translates into value creation for our investors whose farmland portfolios we manage; a win-win for both investors and farmers. Value creation for farmers manifests itself in various ways: in financial flexibility, enhanced profitability, improved sustainability, and in contributions to local farm communities across Canada.
We codified our approach in a responsible investing policy (available here) and we actively monitor and track the environmental and social aspects of our investing activities on a property-by-property basis in our annual reports to investors. We have also tried to lead a broader discussion in the Canadian agricultural community on the benefits of responsible investing through public events such as local community town hall meetings, educational conferences, public speaking events, farm tours, documentary sponsorships and by participating in policy discussions with government officials and academics. In 2014, Bonnefield was the first Canadian farmland manager to become a signatory to the UN’s Principles for Responsible Investing.
Given this background, it has been gratifying for us to see evidence of other investors taking a sustainable approach to the agricultural sector. Over the past quarter alone, we have witnessed high-profile momentum in the sustainable agricultural investment space. There appears to be promising action being taken by investors to address some of the long-term sustainability issues facing the world’s food production systems, and we are hopeful that this emerging trend will become a broad movement. Some examples:
- A group of influential investors including Bill Gates, Jeff Bezos, Ray Dalio, Richard Branson and Michael Bloomberg collaborated to form an investment fund named Breakthrough Energy Ventures (BEV). The firm offers patient capital to companies with high-impact potential and that aim to solve major, global issues. Last month BEV led an investment round in Pivot Bio, an agricultural company working on nitrogen-fixing microbes aimed at reducing fertilizer use and, thereby, environmental impacts and operating costs for farmers.
- Jeremy Grantham’s Environmental Trust also led an investment round in the agricultural space. In October the trust invested in Land Life Company, a technology firm with the aim of reducing global soil degradation. They will continue to work on projects which meet their aims by offering technologies such as autonomous planting, remote sensing and blockchain verification. Grantham, co-founder of the $70 billion investment firm GMO Capital (and who I have frequently quoted in my blog posts), has adamantly expressed the importance of investing in sustainable agriculture as climate change, land scarcity and changing diets in the developing world are projected to threaten our global food system.
These stories are evidence of a growing trend: investors are giving greater consideration to environmental, social and governance (ESG) outcomes of their agriculture investments. According to the latest trends report from the Responsible Investment (RI) Association, more than half of the Canada’s investment industry considers ESG factors in their investment decisions, representing over $2 trillion in assets under management.
Impact investing takes the ESG mandate a step further by promoting investment-specific outcomes within a responsible investing framework. The Responsible Investment Association notes that impact investing in Canada has grown by over 60% (as measured by assets under management) over the past two years alone. Investors visibly aim to make a positive contribution to society while also generating attractive returns. Investors are aligning their portfolios with their values and allocating assets towards social and environmental progress as well as profit.
We are pleased to see that impact investing is being transformed from a soft, fuzzy platitude to its rightful place as a respected core principle of global financial best practices.
Canada’s farmers bring to mind the black knight in Monty Python and The Holy Grail. They keep on fighting despite being thrashed, again and again, by the seemingly endless series of challenges thrown at them over the spring and summer months: extreme weather patterns, NAFTA renegotiations, collateral damage from US-China tariffs, a diplomatic spat with Saudi Arabia and even a bizarre whodunnit relating to genetically modified wheat that mysteriously appeared in Alberta. Many of these issues remain fluid, but here is a brief mid-season summary of where things stand down on the farm:
- Weather – No part of the country has had “normal” weather this growing season. The west has struggled with continued dryness all season, Central Canada had a cold wet spring followed by dry, searing heat punctuated with the occasional flooding rain storm, and the Maritimes experienced early season flooding and unseasonable heat over the summer months. Despite these challenges, our property management team reports that, for most Canadian farmers, the crops are looking quite good. Are this summer’s weather patterns an aberration or the new normal caused by climate change? The Economist recently published an excellent article on this debate here.
- NAFTA – The ongoing NAFTA re-negotiations have been front-page news for more than a year now, but despite almost 24/7 coverage, no details have been publicly revealed about the potential impacts that a new deal (if any) would have on Canadian farmers. One of President Trump’s favourite objects of scorn is Canada’s supply management system for dairy products. Putting aside the fact that the US also heavily subsidizes its dairy sector, it is likely that any renewed NAFTA will mean changes for Canada’s dairy farmers. Nonetheless, we do not believe these potential changes are a significant risk for Canada’s overall ag sector. Any changes to the current system would likely include generous transition assistance that would limit the impact of any changes for Canada’s dairy farmers. In the long run, we believe that any trade deal that increases Canada’s access to booming world dairy markets, would be a net benefit to Canada’s dairy farmers. Our current supply managed dairy system effectively shuts Canadian farmers out of the strong worldwide demand for dairy products (especially from China), so greater access to world markets would, in the long run, be an opportunity not a threat to Canada’s farmers. An excellent report by Al Mussel of the Agri-Food Policy Institute separates fact from fiction in the dairy dispute and can be found here.
- China-US Trade War – Canadian soy farmers have been caught in the crossfire of a tit-for-tat tariff war between China and the US. In early July, China levied a 25% tariff on soy imports from the US. In anticipation of an expected oversupply of US soy on world markets, the price of soy has recently declined to USD$310 per metric ton, from USD$442 per ton in April. The weak Canadian dollar has insulated farmers in this country to a certain extent, but prices are clearly depressed from where they would be in the absence of the trade dispute. Our view is that the market has over reacted and in the long term, if the trade dispute is not resolved, it could represent a significant opportunity for Canadian soy producers. China, the world’s largest soy importer, has an annual shortfall of 90 million tons of soybeans and the U.S. supplies 39% of that shortfall. China, on the other hand represents 62% of US soy exports. Brazil, which recently surpassed the US as the world’s largest soy producer, will be the primary beneficiary of these tariffs. Canadian soy producers, however, are also well positioned to benefit from strengthened export demand. China’s massive appetite for imported soy, leads us to believe that current soy prices are a case of “short-term pain for long-term gain” for Canadian farmers.
- Diplomatic dispute with Saudi Arabia – In early August, Saudi Arabia took offence to Twitter posts by the Canadian government that urged the immediate release of human rights activists. The ensuing backlash from Saudi Arabia saw, among other trade-related measures, a ban on imports of Canadian wheat and barley. Despite the publicity Saudi Arabia’s announcements have had, Canadian farmers will not notice much of a change. In 2017, Saudi purchased about 10% of Canadian barley exports – only 134,000 metric tons – and less than 1% of Canadian wheat exports. The volumes of grain impacted by the Saudi ban are not significant and so we do not expect a material impact on Canadian farmers from the Saudi measures.
- GMO wheat mystery in Alberta – The most bizarre event to befall Canadian farmers this summer, was the mysterious appearance in July 2017 of an experimental strain of genetically modified wheat in a roadside ditch in Alberta. GMO canola, corn, soy and other crops are commonly grown in Canada and exported abroad, but GMO wheat is not approved for commercial production in Canada (or anywhere else in the world). The wheat was identified after it survived an application of Round Up weed killer and, when the discovery was announced by Canadian Food Inspection Agency (“CFIA”) early this summer, Japan reacted by suspending wheat imports from Canada. Japan buys roughly 1/3rd of all Canadian wheat exports so the implications were serious for Canadian wheat producers. Canadian wheat prices fell as a result. Fortunately, Japan resumed importing Canadian wheat on July 20th after it was shown that GMO strains had not infiltrated our supply channels. But the mystery remains: how did this experimental strain of GMO wheat find its way to a roadside ditch in Alberta? University researchers and the CFIA have reportedly ruled out all plausible explanations, leaving sabotage as the leading theory. Did an anti-GM lobby group or a Russian agent scatter some genetically modified seeds along a roadside, knowing that the discovery would seriously disrupt Canadian wheat exports? According to published reports, both these groups have a history of mischievous activities in modern agriculture systems, so the theory – though it sounds outlandish – is at least plausible. It is unlikely that we will ever know for sure, but the mystery is further investigated by the Globe and Mail here.
On the whole, Canadian farmers seem to be taking all of these short-term irritants in stride. Visits with Bonnefield’s farmers over the summer months have not revealed any serious issues of concern and most remain optimistic for a reasonable harvest over the coming months.
Contrasting this backdrop of short-term challenges are the long-term trends that will continue to benefit Canadian farmers over the coming decades. These realities are pointedly summarized in the latest quarterly commentary from Jeremy Grantham, co-founder of Boston-based GMO, an investment firm with $71 billion in assets. I urge you to read it. His commentary puts into stark perspective the urgent threat climate change and soil erosion pose for the world’s food supply. It also highlights the serious role that we, as both investors and long-term stewards of Canadian farmland, owe to current and future generations. Grantham’s article, available here with a free registration, is a remarkable summary of why we do what we do here at Bonnefield, and why we are so focused on soil health and agrology.
